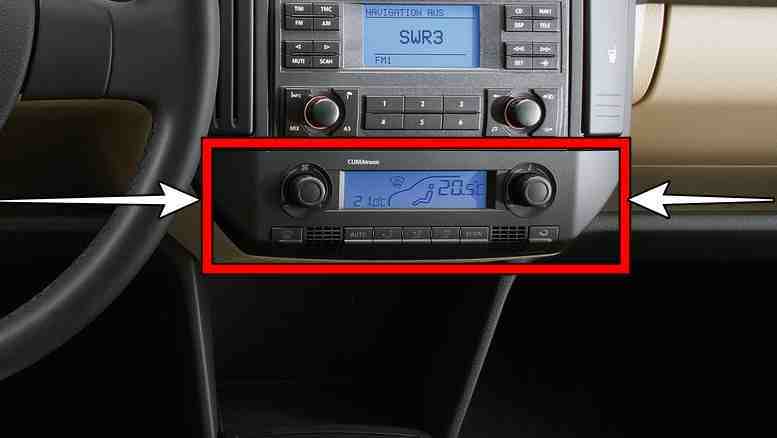

How to change or remove Climatronic panel (AC switches / air conditioner switches / Climatronic) on VW Polo 9N (2005-2010) in 2 easy steps.

I encourage you to also look at these THOUSANDS of PRODUCTS at promotional prices for VW Polo 9N HERE: https://amzn.to/4yQDQoF

HERE are the VW Polo 9N Accessories at THE BEST PRICE: https://s.click.aliexpress.com/e/_c3CKgaTN

The AC climate control panel on a VW Polo 9N (2005-2010) may need to be removed when it no longer works properly, needs to be replaced, or you want to repair its buttons or lighting. In this video, I show you step by step how to remove the climate control panel without damaging the center console.

If you follow the instructions below, the entire operation takes about 10-20 minutes and only requires a few basic tools.

Tools required

– T20 Bit Torx: https://amzn.to/4g9U7NS

Step 1: Remove the two bolts at the bottom of the center console using a T20 Bit Torx.

It is not necessary to remove the Radio-CD panel from above to remove the AC control panel.

Step 2: Pull the Climatronic panel outwards and disconnect the 3 plugs at the back.

To buy it, you can search for it by the serial number 6Q0 907 044 C written on the white label.

How to install the panel back – Installation is done in reverse order:

1. Connect all the plugs.

2. Insert the panel into the slot.

3. Install the screws.

4. Turn on the ignition and check the operation of the air conditioning.

Common problems:

– The panel does not turn on: check that all the plugs are fully connected.

– The buttons do not work: there may be internal wear or an electronic defect in the panel.

– The lighting is off: check the power supply or any faulty LEDs.

Is diagnosis required after replacement?

In most cases, no. If you install a compatible panel, it works immediately.

Removing the Climatronic panel on the VW Polo 9N (2005-2010) is a simple operation, ideal for replacing the unit, repairing the buttons or accessing the center console. Using the right tools and following the steps in this tutorial, you can perform the intervention quickly and without damaging the interior elements.

If this guide was useful to you, follow the other tutorials dedicated to the VW Polo 9N model for maintenance, diagnosis and step-by-step repairs.
